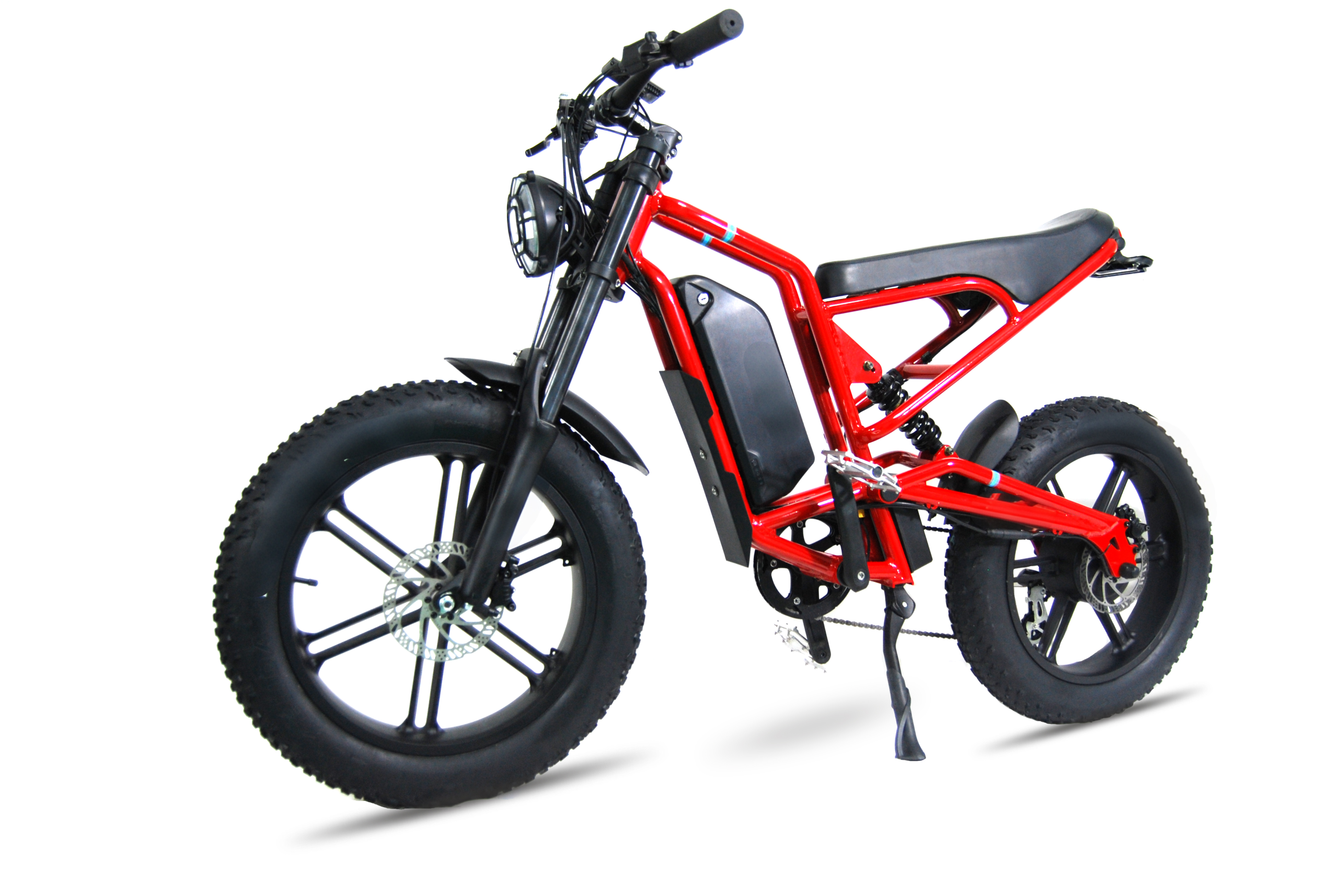

WY-ZH BE 0075

Battery: 48V 13AH
Frame: Iron
Range: 40km-45km
Motor: 48v/500W integrated wheel
Total payload: 120kg
Recommended rider height: 1.7-2m
Recommended rider weight: 70-100kg
Charger: 54.6v/2A
Controller: 9-tube, 48v/20A
Display: YL-80C-C-K6 button color screen
Saddle height: 87cm
Total length: 170cm
Wheelbase: 119cm
Foot height: 17-52cm
Handlebar height: 102cm
Head tube length: 17.5cm
Saddle length: 59cm
Handlebar length: 680mm
PAS sensor: 12-pole magnetic dual Hall effect sensors
Brakes: Front and rear hydraulic discs
Front fork: 20-inch aluminum snow shock absorbers
Rear suspension: 205mm center distance, 1200 lbs
Gear: 7-speed Shimano
Tires: 20*4.0″
Headlight: LED
Taillight: YQHD-7, 48v-60v universal
Maximum design speed: 45 km/h

Number per 40-foot container: 190
Outer box dimensions: 150*31*79″
Net weight: 42 kg
Gross weight: 51 kg
