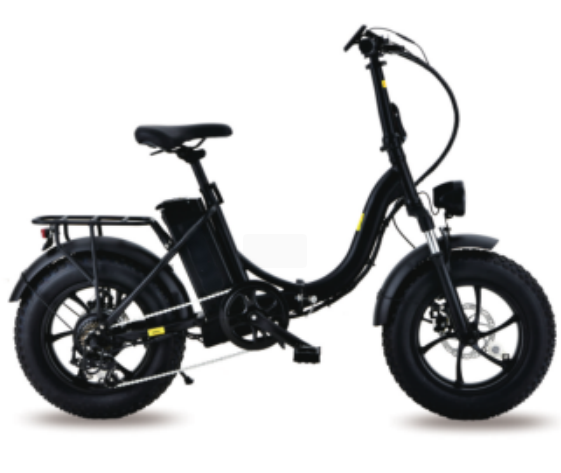

WY-ZH BE 0074

Battery: 48V10AH
Frame Iron
Cruise Range: 35-40KM
Motor: 500W
Total Payload: 120kgs
Recommended Rider Height: 1.7-2 meters
Recommended Rider Weight: 70-100kgs
Charger: 54.6v-2A
Controller: 9-tube 48v/20A
Display: YL-80C-C-K6 key color screen
Saddle Height: 770-920mm
Total Length: 1500cm
Wheelbase: 1030mm
Foot Height: 130-470mm
Handlebar Height: 1050-1200mm
Head Tube Length: 135mm
Saddle Length: 270mm
Handlebar Length: 600mm
PAS Sensor: 12-particle magnet dual Hall effect sensor
Brake: Front and rear mechanical disc brakes
Front Fork: Aluminum shoulder iron leg front fork
Rear suspension:
Gear: 7-speed SHIMANO
Tire: 16*4.0
Front light: LED
Tail light: 48VLED
Maximum design speed: 42 km/h

Number of containers (40 feet): 269
Outer box size: 87*45*68
Net weight: KGS 29.8
Gross weight: KGS 37.6
